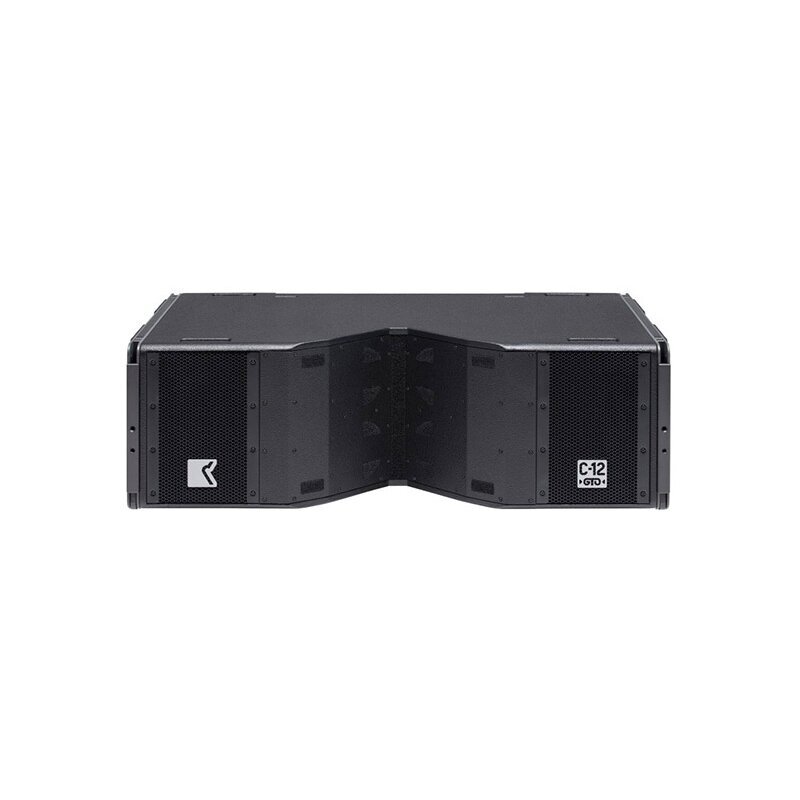

Outline GTO C-12
Outline GTO C-12
Kodas: Outline GTO C- 12200 € be PVM- Compact high-power full range line-source element to form part of the GTO turnkey solution.
- Light weight; 12 elements with 1 GTO DF from a single 1 ton chain motor.
- High efficiency full range element incorporating 2 x 12” LF drive-units, 4 x 6.5” MF drive-units and 2 x 3” diaphragm HF drivers on a D.P.R.W.G. waveguide, coupled to an Outline ‘V-Power’ baffle.
- Very high power handling (3200 LF + 2400 MF + 1000 HF watts AES peak) and sound pressure (147.5 dB SPL peak @ 1 metre – full space).
- Equipped with the high-precision, lightweight, integrated GTO rigging system to allow accurate aiming and coverage.
- Design file available within the ‘Open Array’ 3D acoustic simulation software.
- Designed as a stand-alone compact full range section within the GTO range
- Can be used individually as fills or combined to create main FOH, side hang or delay systems.
Prekės ženklasOutline-
FREQUENCY RESPONSE: (-10 dB) 45 Hz – 18 kHz
AVERAGE DISPERSION: Horizontal: 90° Vertical: Depending on array configuration
IMPEDANCE: Low: 2 x 8 Ω (min 2 x 6 Ω) Mid: 8 Ω (min 6.6 Ω) High: 16 Ω (min 16.6 Ω)
POWER – WAES: Low: 2 x 400 (2 x 1600 peak) Mid: 600 (2400 peak) High: 250 (1000 peak)
MAX SHORT-TERM SPL @ 1 m, free-field*: 147.5 dB SPL
LOUDSPEAKERS AND LOADING: Low: 2 x 12″ NdFeB Hybrid band-pass loaded woofers Mid: 4 x 6.5″ NdFeB partially horn loaded mid woofers High: 2 x 3″ diaphragm NdFeB compression driver loaded by 2 D.P.R.W.G.
WEIGHT SINGLE UNIT: 72.5 kg
DIMENSIONS: Height: 363 mm (14 9/32″) Width: 1126 mm (44 11/32″) Depth: 655 mm (25 25/32″)
DIMENSIONS (With Pins): Height: 363 mm (14 9/32″) Width: 1181 mm (46 1/2″) Depth: 655 mm (25 25/32″)
* calculated using +10 dB crest-factor signal
