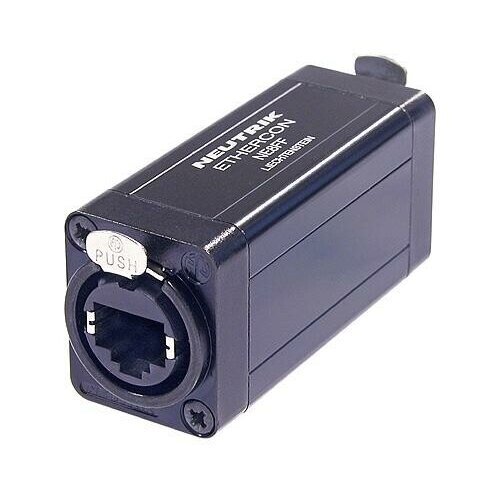

Accommodates NE8MC* or any standard RJ45 plug The adapter offers the approved latch lock system The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications.

Connection Type: Adapter

Gender: female

Electrical:

Contact resistance: < 10 mΩ Dielectric strength 1 kVdc

Frequencyrange: 1 - 100 MHz

Insulation resistance: > 0.5 GΩ

Rated current per contact: 1,5 A

Rated voltage: < 50 V

Standard compliance: TIA/EIA 586B, IEC11801

Mechanical:

 Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N Lifetime > 1000 mating cycles

Locking device: Latch lock

Material:

Contact plating: 0.2 µm Au over Ni plating

Contacts: Bronze (CuSn8)

Insert: PBTP 15 % GR

Shell: AlMgSi 0.5, black plated

Strain relief: CuZn35Pb2, Tin plated

Environmental:

Flammability: UL 94 HB

Temperature range: -30 °C to +80 °C
