FEATURES

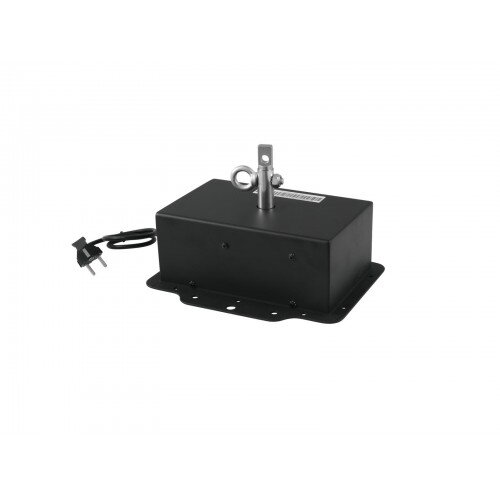

DMX controlled motor for mirror balls up to 100 cm, up to 5 RPM

• The maximum load always means the mirror ball weight including chains and the fixation material

• Rotation direction and rotation speed adjustable

• 2 chains and 4 quick links must be ordered separately

• The motor always has to be installed with a secondary safety attachment

• Before taking into operation for the first time, the installation has to be approved by an expert

• Can be operated in 1 CH mode

• Preprogrammed in LED PC-Control 512

• Controlling by stand-alone; DMX

• Suitable for a mirror ball with a diameter of up to 100 cm

• For application areas such as: Clubs/dancing school

TECHNICAL SPECIFICATIONS

• Power supply: 230 V AC, 50 Hz

• Power consumption: 16 W

• IP classification: IP20

• Protection class: Protection class I

• Power connection: Fixed power supply cord with safety plug

• Cable construction: 3 x 0,75 mm² H05VV-F

• Cable length: Approx. 0,9 m

• Fuse: Circuit breaker, 2,5 A

• Speed: 0 RPM to 5 RPM; forward/backward

• DMX channels: 1

• Control: LED PC-Control 512; stand-alone; DMX

• Maximum load: 40 kg

• Max. mirror ball diameter: 100 cm (EUROLITE)

• Housing color: Black matte

• Diameter mounting holes: 2 x Ø12mm; 4 x Ø8mm; 10 x Ø6mm

• Material: Metal, 3 mm

• Dimensions: Width: 28,5 cm

• Depth: 23,5 cm

• Height: 19 cm

• Weight: 6,00 kg
