FEATURES

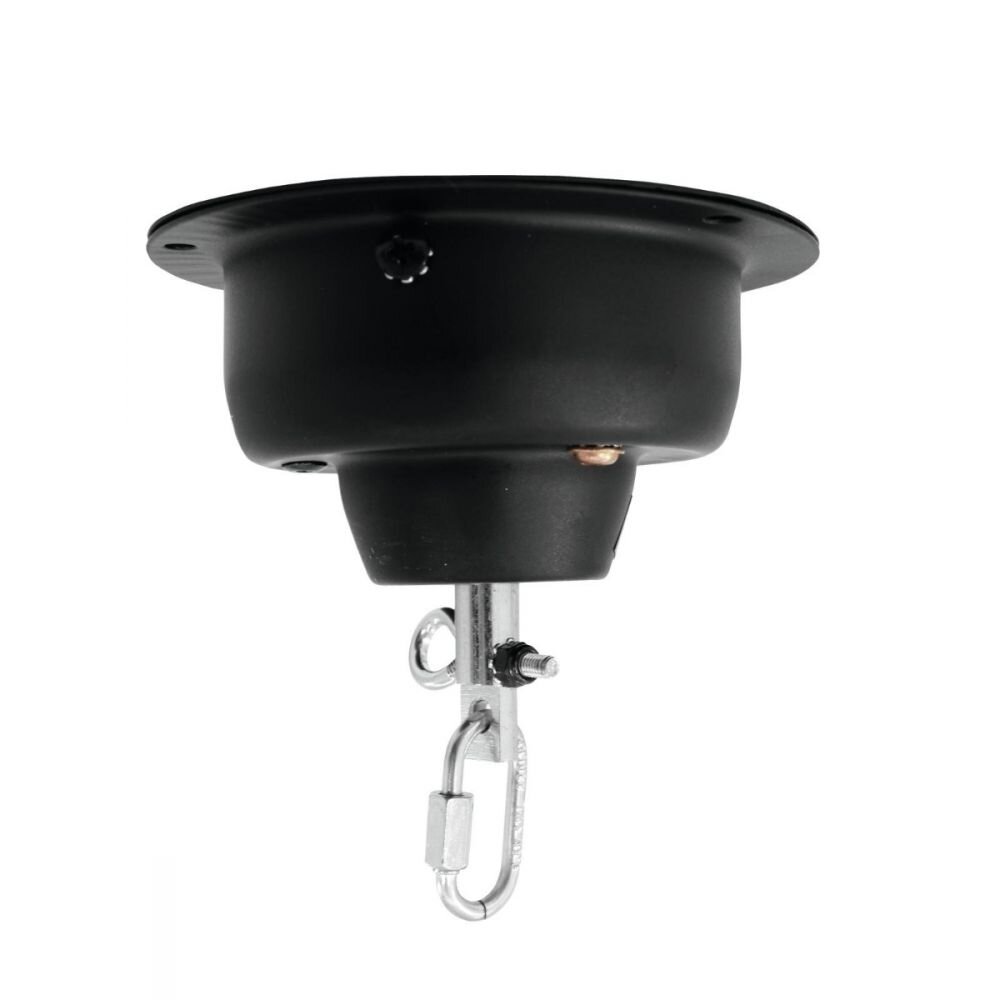

Mirror ball motor for mirror balls up to 40 cm diameter

• The maximum load always means the mirror ball weight including chains and the fixation material

• 2 chains and 4 quick links must be ordered separately

• 1,5 rotations per minute

• The motor always has to be installed with a secondary safety attachment

• Before taking into operation for the first time, the installation has to be approved by an expert

• Controlling by plug and play

• Suitable for a mirror ball with a diameter of up to 40 cm

• For application areas such as: Clubs/dancing school

TECHNICAL SPECIFICATIONS

• Power supply: 230 V AC, 50 Hz

• Power consumption: 4 W

• IP classification: IP20

• Protection class: Protection class I

• Power connection: Fixed power supply cord with safety plug

• Cable construction: 3 x 0,75 mm² H05VV-F

• Cable length: Approx. 0,9 m

• Rotation: 1,5 RPM - 1,8 RPM , 360 ° forward/backward

• Control: Plug and play

• Maximum load: 4 kg

• Max. mirror ball diameter: 40 cm (EUROLITE)

• Housing color: Black

• Diameter mounting holes: 3 x Ø5mm

• Material: Metal

• Dimensions: Height: 9 cm

• Diameter: Ø 10,8 cm

• Weight: 410 g

• Chain link

• Material: Steel

• Color: Silver

• Dimensions: Diameter: Ø 2,5 mm
