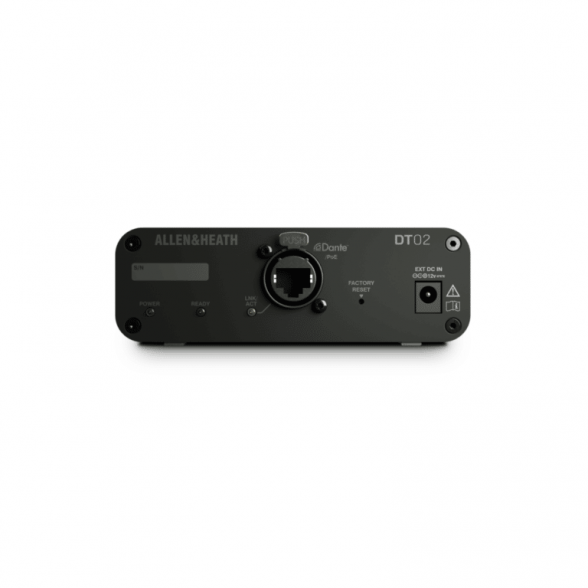

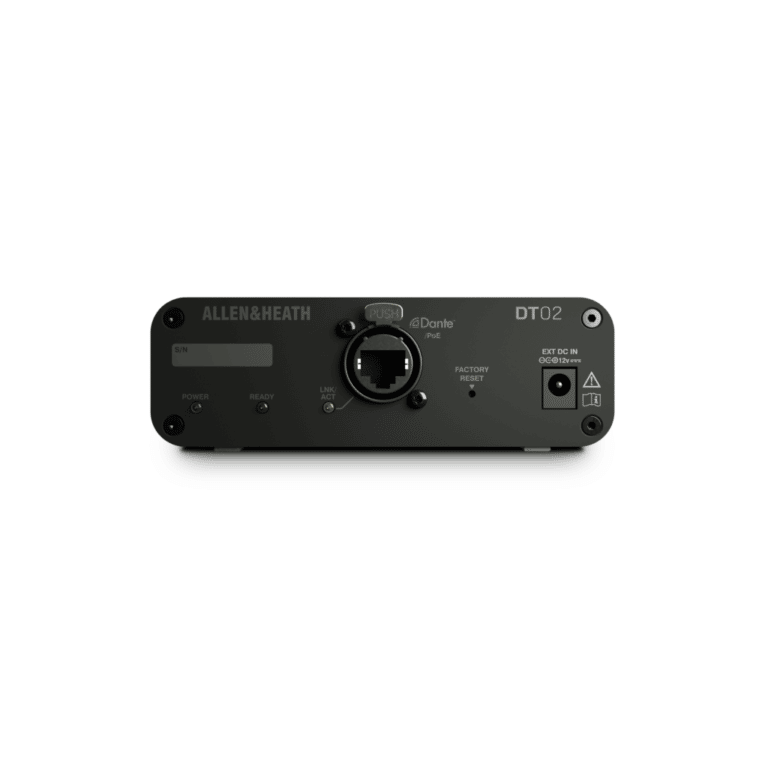

Allen & Heath DT-02-X Features

• Dante output interface, 48kHz/96kHz

• PoE powered or 12VDC (power supply included)

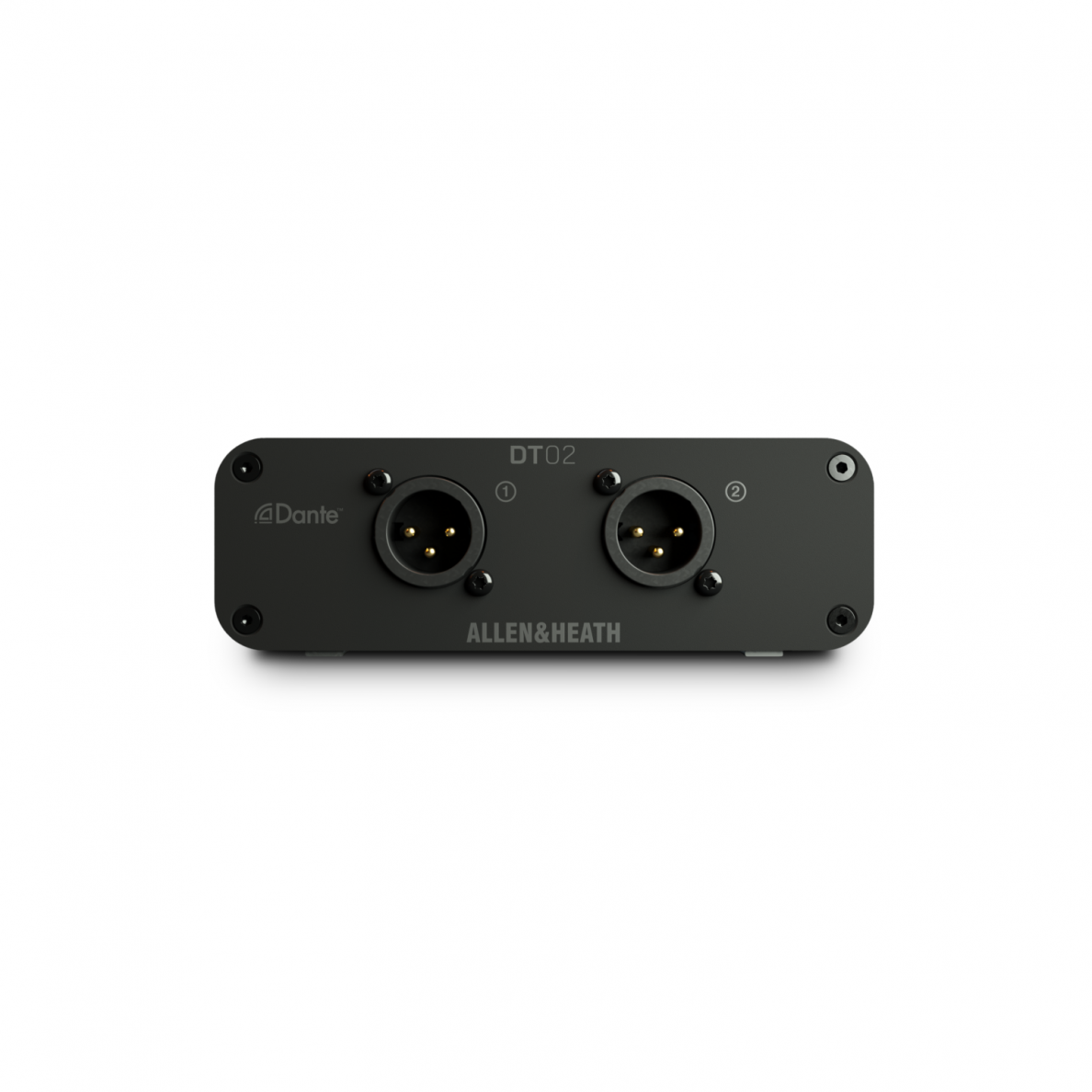

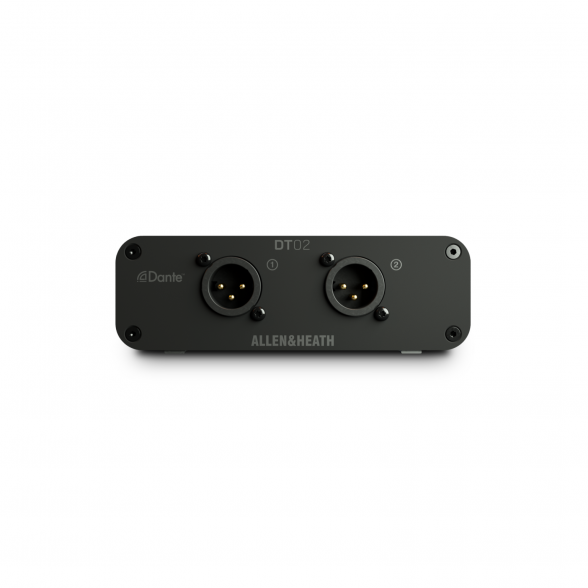

• 2 x XLR line outputs

• EtherCon connector

• Durable aluminum case

• Rubber feet for desktop use

Allen & Heath DT-02-X Specifications

• XLR Outputs: Balanced and relay protected

• Output Impedance: Nominal Output: +4dBu = 0dB meter reading

• Max. Output Level: +22dBu

• Dante: 48kHz/96kHz

• DC Input: +12VDC.1.25A

• Power Consumption: 10W max.

• PoE Requirements: 802.3af 15W

• Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)

• Dimensions: 130 wide x 131 deep x 43 high

• Weight: 0.5 kg
